Aqua Control: Evolution Series Spider & Arch Nozzle

Roll over image to zoom in Click on image to zoom

Our Evolution Series Aerating Fountain Nozzles form beauty with function and ease, to perfect your smaller bodies of water. (please note; the fountain is sold separately)

TORNADO

Name: Aqua Control: Evolution Series Spider & Arch Nozzle
Brand: Aqua Control
SKU: EVN-0.5-SAR
Price: 279.00 USD
Availability: InStock

The Tornado produces a beautiful, full, conical spray pattern.

Specifications

60Hz / 50Hz
Height: 6 ft. / 1,5m
Diameter: 15 ft. / 3,7m
Output: 134 GPM / 23 M³/H

TORRENT

The Torrent creates a maximum volume, white boil, of highly aerated water.

Specifications

60Hz / 50Hz
Height: 1.5 ft. / 0,3m
Diameter: 3 ft. / 0,7m
Output: 165 GPM / 30 M³/H

ARUM

A two tier pattern with a tall center spray surrounded by 12 gracefully arching streams about 1/3rd the height of the center spray

Specifications

60Hz / 50Hz
Height: 6 ft. / 1,4m
Diameter: 21 ft. / 5,2m

CLUSTER ARCH

The Cluster Arch produces 12, coherent, gracefully arching streams.

Specifications

60Hz / 50Hz
Height: 6 ft. / 1,25m
Diameter: 16 ft. / 2,7m

FLEUR DE LIS

The Fleur de Lis has a high, smooth, narrow, center stream surrounded by an 8 stream intermediate arching pattern that in turn is surrounded by 8 lower and wider arching streams. This creates a pyramid effect.

Specifications

60Hz / 50Hz
Height: 7 ft. / 1.5m
Diameter: 18 ft. / 3m

GUSHER 2

The Gusher Spray Patterns are exclusive to the Stationary Evolution Series. Water basin depth from 20 inches to 27 inches.

Height: 2 ft.
Splash Diameter (approx.): 2 ft.
Water Basin Diameter: 3 ft.

GUSHER 4

The Gusher Spray Patterns are exclusive to the Stationary Evolution Series. Water basin depth from 20 inches to 27 inches.

Height: 4 ft.
Splash Diameter (approx.): 3 ft.
Water Basin Diameter: 5 ft.

GUSHER 6

The Gusher Spray Patterns are exclusive to the Stationary Evolution Series. Water basin depth from 20 inches to 27 inches.

Height: 6 ft.
Splash Diameter (approx.): 4 ft.
Water Basin Diameter: 7 ft.

(Water basin in picture has a diameter of 22 ft.)

METRO

The Metro produces a 12 stream intermediate arching pattern.

Specifications

60Hz / 50Hz
Height: 6 ft. / 1.3m
Diameter: 8 ft. / 1.8m

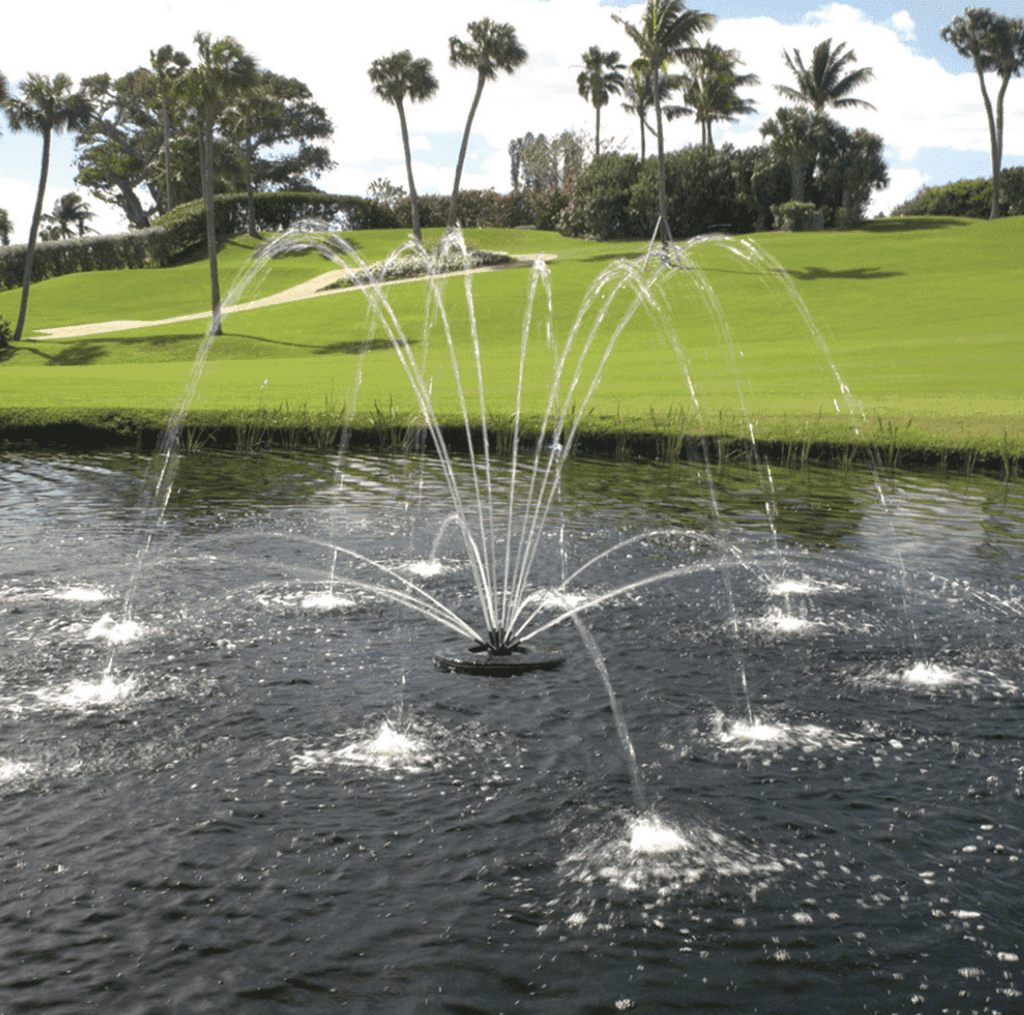

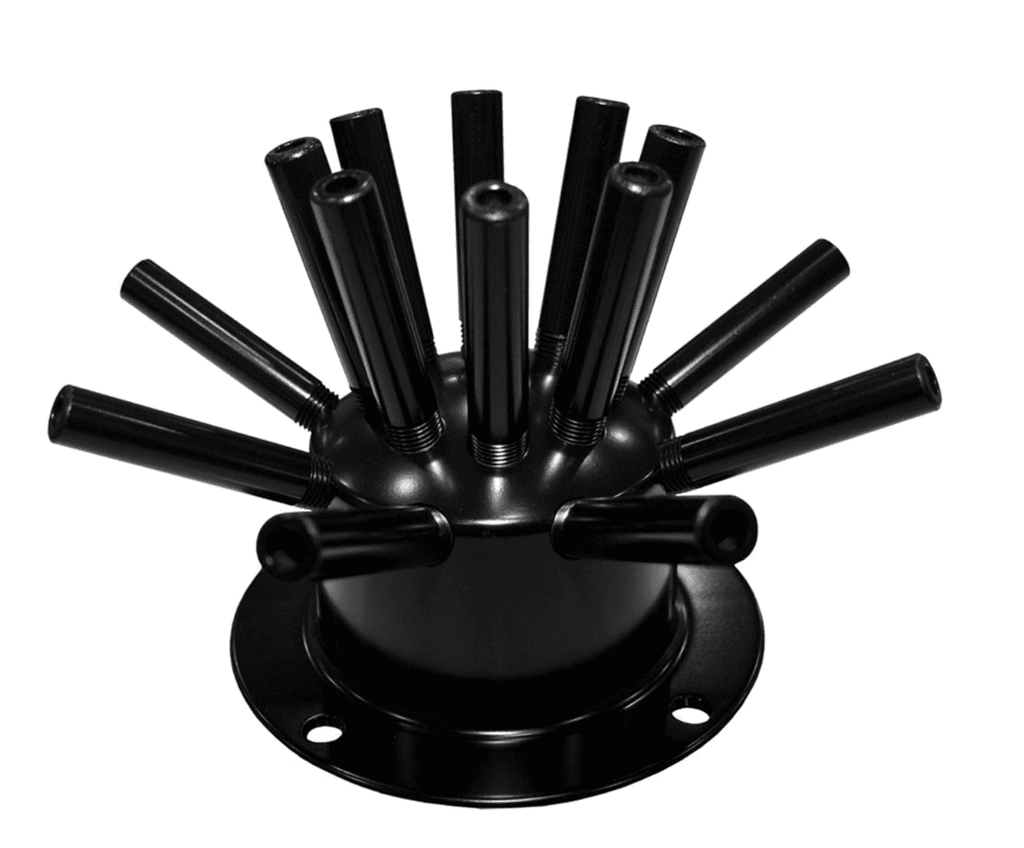

SPIDER & ARCH

The Spider & Arch produces 8 beautiful, coherent streams and 8 wide, low, streams that create a large diameter pattern. The Spider & Arch covers a large surface area while still providing an attractive and highly visible pattern, both day and night.

Specifications

60Hz / 50Hz
Height: 5.5 ft. / 1,2m
Diameter: 18 ft. / 4m

TIARA

The Tiara is a 3 tier pattern with a high, central stream that is surrounded by 8 reduced height arching streams which in turn are surrounded by 8 wide arching streams.

Specifications

60Hz / 50Hz
Height: 7 ft. / 1,5m
Diameter: 15 ft. / 3,7m

IMPORTANT: Reading and understanding these instructions and warranty disclaimer are necessary prior to product installation and operation.

Under NO circumstances should anyone enter the water with the electrical equipment plugged in.
NEVER run the unit out of the water. It may damage the motor seals.
NEVER lift or drag the fountain by the power or light cord.
Suitable for FRESHWATER applications only.
The fountain suction screen should be inspected for clogging on a monthly basis. If matted weeds, leaves or plastic bags are present, remove them with a bristle brush. Failure to keep the suction screen clear of blockages will cause low water flow and may cause premature motor failure. This type of failure is NOT covered under the Aqua Control, Inc. Manufacturer’s Warranty.
In freezing conditions, the fountain must be removed from the water body and stored in an area above 32°F.
Aqua Control, Inc. or its distributors are not liable for electrician’s fees incurred for troubleshooting electrical issues.

Warranty: 2 Years
