Features

Key Technical Features

• Welded Drop-Stitch: Robust 15 cm welded drop-stitch construction with triple-layer seams.

• Tubular Construction: Welded structural tubes with triple-layer seams for maximum durability.

• Duratex Cx3: Premium commercial-grade material for durability, strength, and UV resistance.

• Tritex: Specially textured Duratex material for added grip and cooling properties.

• Interlock 7: Secure, tamper-proof ring connections using Aquaglide’s 2-Step Vario Strap system.

• Halkey-Roberts Valves: Tamper-proof caps for rapid inflation and deflation.

Key User Activities

• Shade: Built-in canopy provides shaded comfort.

• Seating: Comfortable tatami-mat seating and supportive backrests.

• Table: Generous central table area for games and entertaining.

• Cupholders: Conveniently placed cupholders to enhance relaxation.

• Cooler Drop: Mesh-bottom cutouts designed to accommodate small to medium-sized coolers.

• Boarding: Low-profile construction ensures easy boarding from the water.

Highlights

• Best For: Socializing and lounging

• Capacity: 6 Adults / 6 Children

• Warranty: Limited 3-year Residential / 1-year Light Commercial

• Dimensions: 10' L x 10' W x 7'5" H (305 cm x 305 cm x 227 cm)

• Minimum Water Depth: 3.3 ft (1 m)

Included

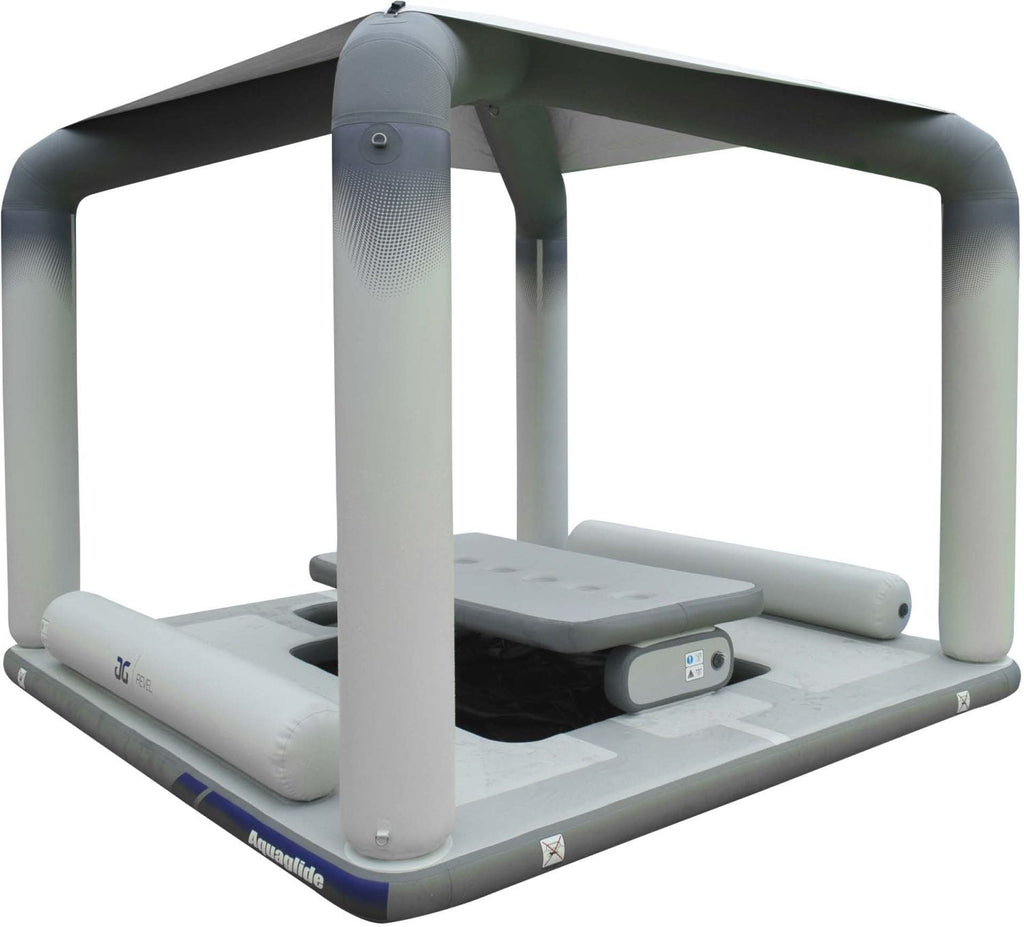

• Revel Lounge

• Repair kit

Not Included

• Anchor weights

• Mooring lines

• Bridles, straps

• Inflation pump

Technical Specifications

• Maximum Weight Capacity: 1,200 lb (544 kg)

• Materials: 15 cm single-layer drop-stitch, 0.90 mm / 31 oz PVC

• Minimum Distance from Shore: 10' (3.0 m)

• Accessory Attachment D-Rings: 7 each on two sides

• Minimum Required Anchor Weight: 4,400 lb (2,000 kg)

• Anchor Points: 4 points, or 2 points with 2-way bridles

Note: Weight recommendations are provided for anchoring under extreme conditions such as heavy weather or waves. Aquaglide recommends consulting with a mooring specialist for proper installation.

Product Notes

• Please refer to the Revel Lounge Tech Sheet for detailed mooring information.

• Aquaglide recommends using the Hurricane 110V 3.6 Pump for inflating Lakefront items to the required 3.5 – 5 psi. Alternatively, any Aquaglide kayak or SUP pump compatible with a Halkey-Roberts valve, such as the Accelerator HP 12V 20 Pump, is suitable.

• Safety is Aquaglide’s top priority. Products must only be combined with other Aquaglide products unless authorized explicitly by the manufacturer. Unapproved combinations can lead to increased risk of injury, entrapment, or death.

Optional Extras

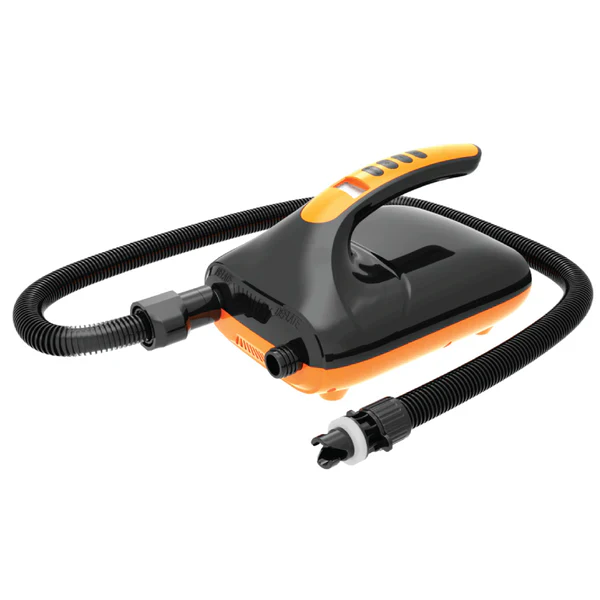

Aquaglide Accelerator HP 12V 20 Pump

Quickly inflates and deflates via a kink-proof hose and compatible fittings for Boston and Halkey-Roberts valves. Ideal for kayaks, paddleboards, and other inflatables.
