- Floating pond & lake fountain built specifically for aeration.

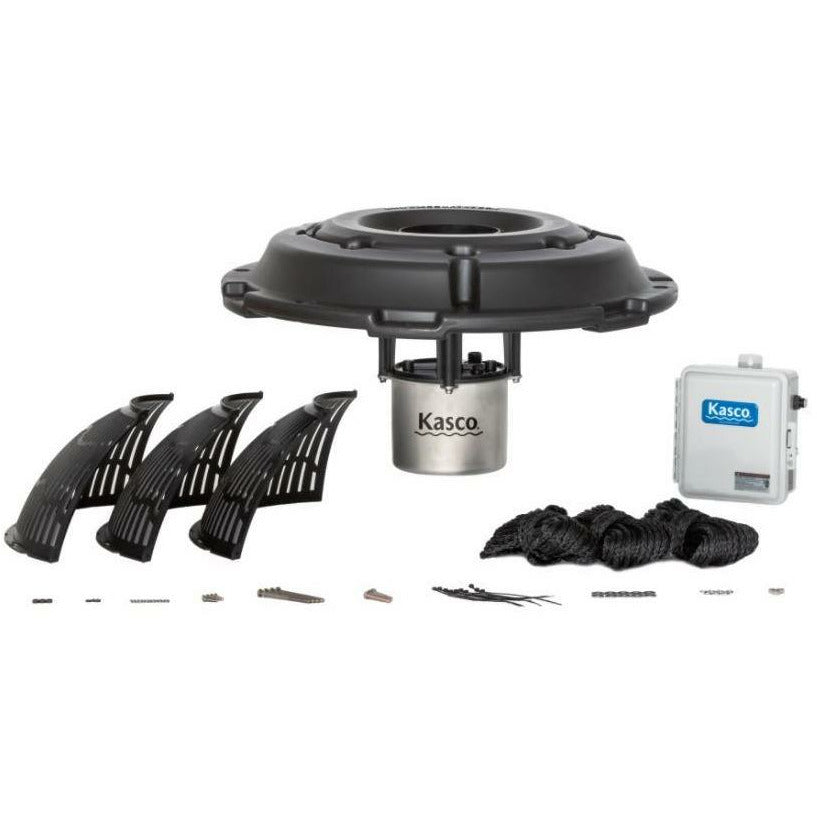

- Package comes with fountain pump, float, bottom screen, control panel with GFCI protection, power cord and mooring lines.
- Available in 1/2 HP, 3/4 HP, 1 HP, 2 HP and 5 HP.
- Available in 120V or 240V.
- If you require 3 phase, please call for pricing.
- 2 year warranty on 1/2 HP, 3/4 HP and 1HP units.
- 3 year warranty on 2 HP and 5 HP units.
|
Fountain
Size
|
Spray
Size
|
Pond Size
Aerated
|
| 1/2 HP |
5’ H x 15’ W |
3/4 Acre |
| 3/4 HP |
6’ H x 21’ W |
1 Acre |

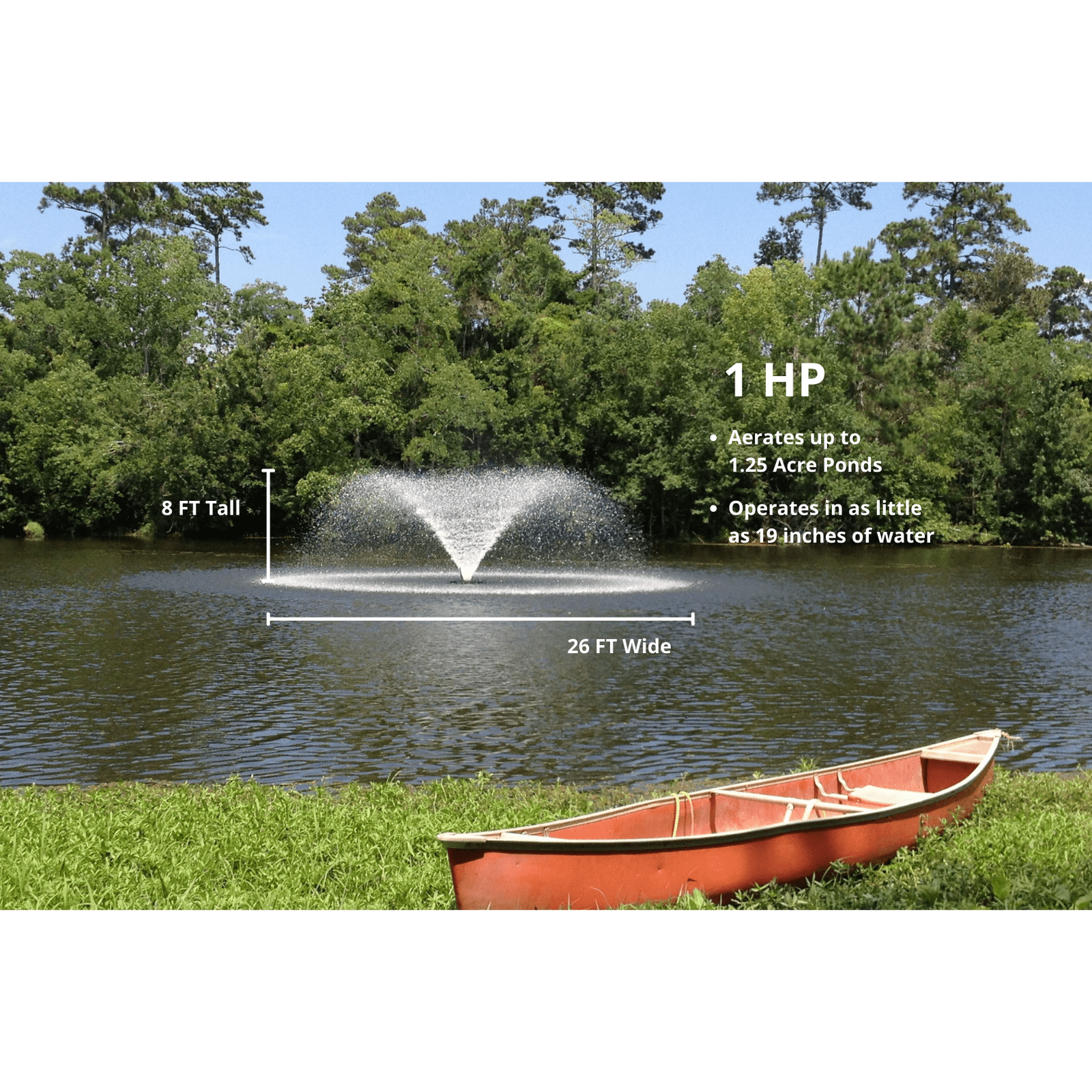

| 1 HP |
8’ H x 26’ W |
1.25 Acre |
| 2 HP |
8’ H x 32’ W |
2 Acres |
| 5 HP |
9' H x 34' W |
3 Acres |
Resources
Fountain Flyer (pdf)
1/2 HP - 1 HP VFX Series Owner's Manual
2 HP - 5 HP VFX Series Owner's Manual
Waterglow Lighting Brochure
RGB Instruction Manual
RGB Control Panel Instructions
RGB Fixture Connection Instructions
RGB Fixture Replacement Instructions
RGB Cord Splice Instructions
LED Composite Lighting Manual
LED Composite Cord Splice Instructions
Specs

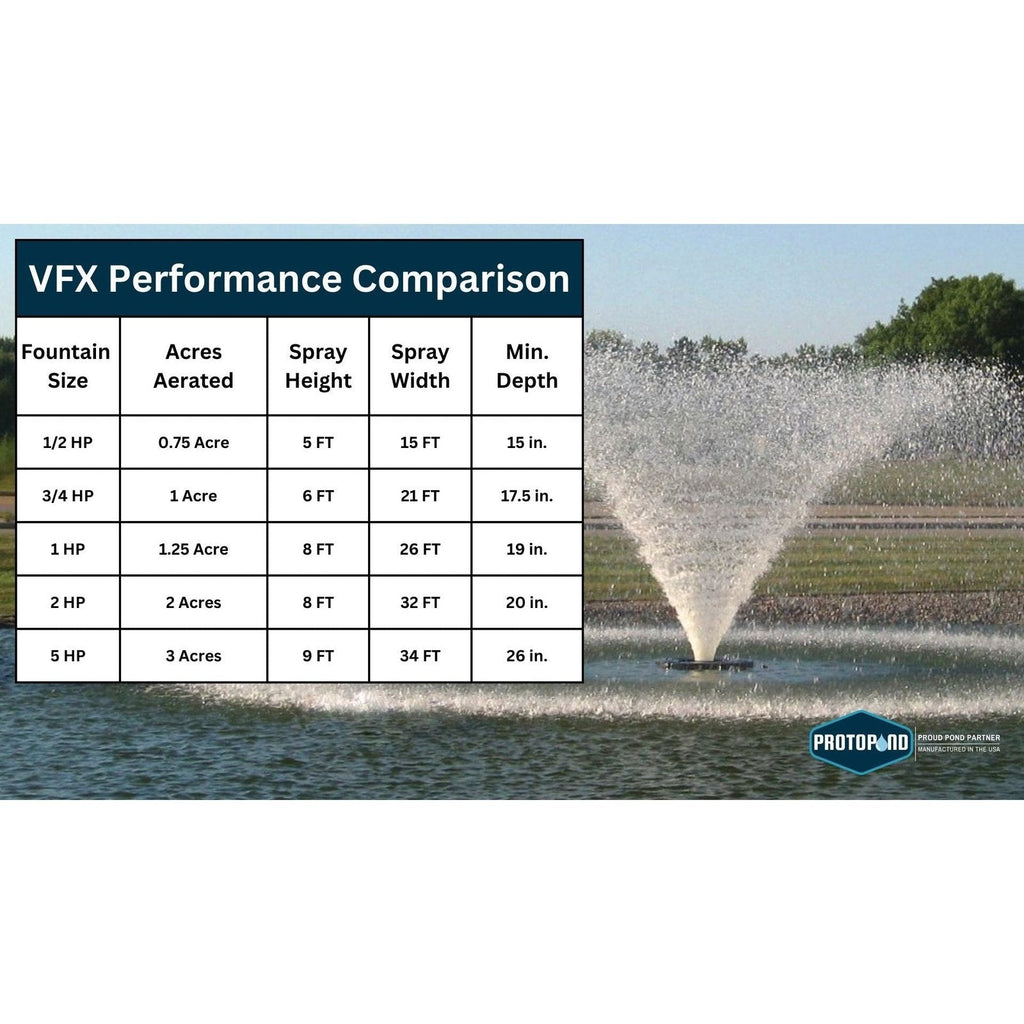

Display Size & Aeration Coverage
| Horsepower |
Display Size |
Pond Size Aerated |

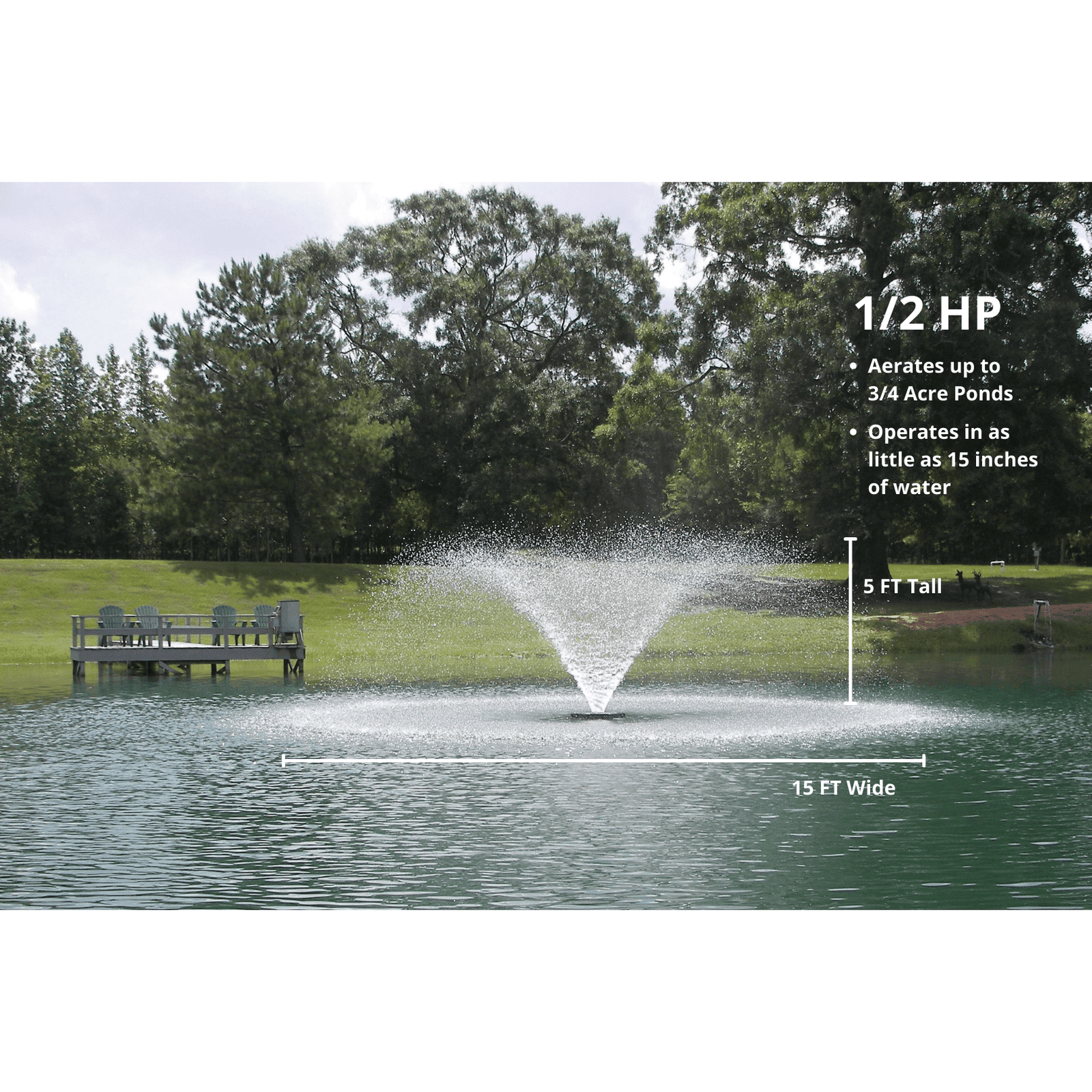

| 1/2 HP |
5’ H x 15’ W |
3/4 Acre |

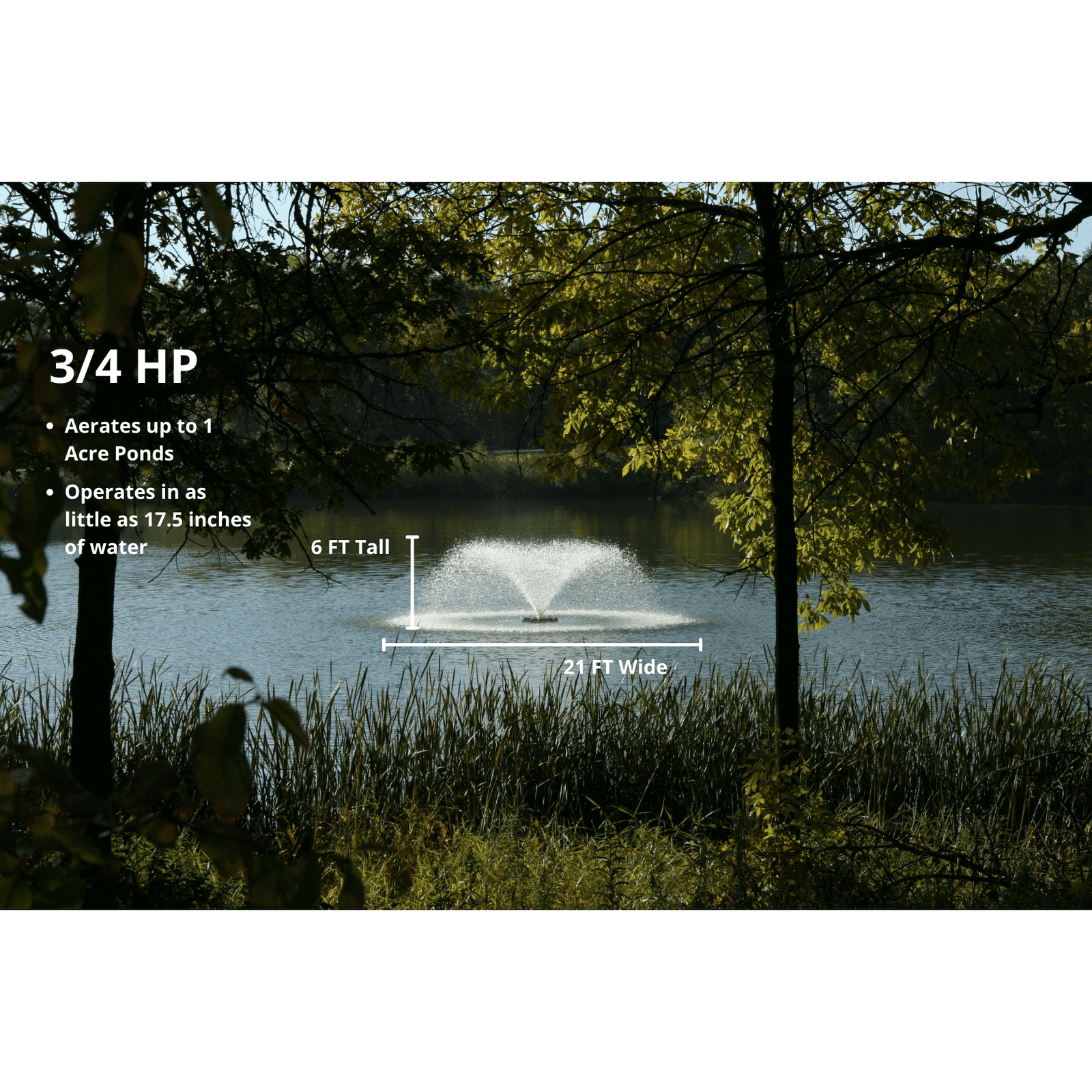

| 3/4 HP |
6’ H x 21’ W |
1 Acre |
| 1 HP |
8’ H x 26’ W |
1.25 Acre |

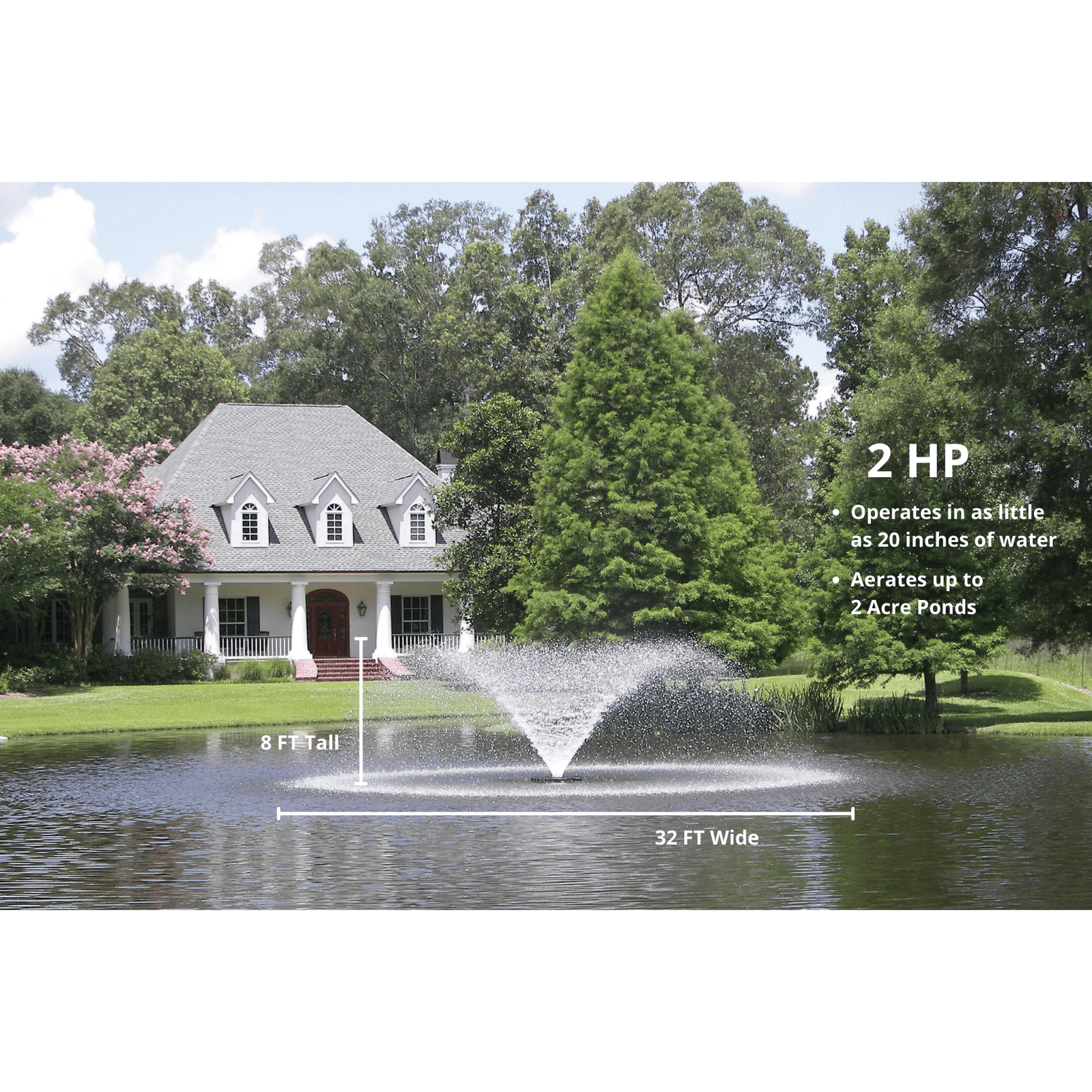

| 2 HP |
8’ H x 32’ W |
2 Acres |

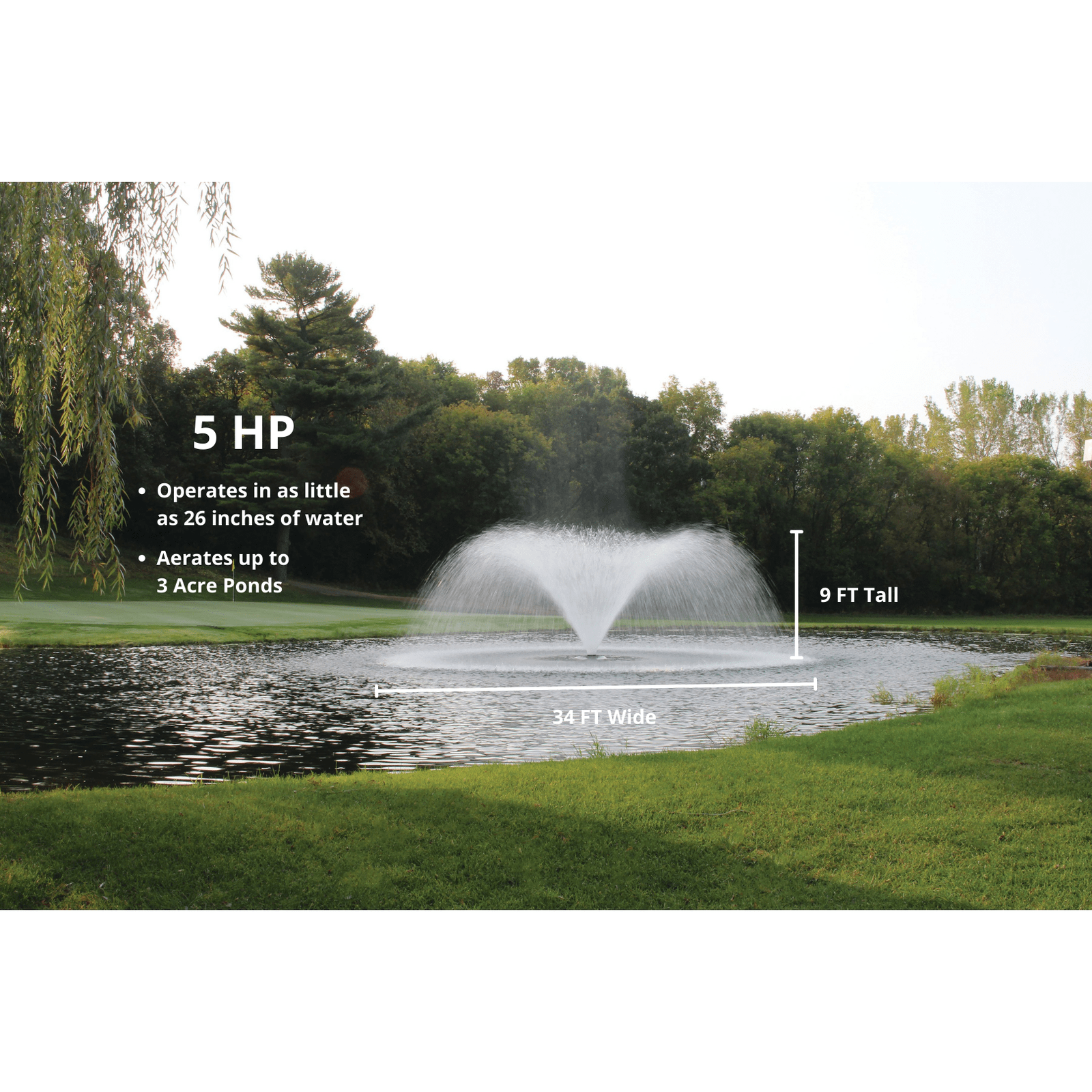

| 5 HP |
9' H x 34' W |
3 Acres |
Minimum Water Depth
| Horsepower |
Minimum Water Depth |
| 1/2 HP |
15 inches |
| 3/4 HP |
17.5 inches |
| 1 HP |
19 inches |
| 2 HP |
20 inches |
| 5 HP |
26 inches |
Electrical
| HP |
Voltage |
Phase |
Amps |
| 1/2 |
120V |
1 |
5.6 |
| 3/4 |
120V, 240V |
1 |
7.3, 3.7 |
| 1 |
120V, 240V |
1 |
11.3, 5.7 |
| 2 |
240V |
1, 3 |
11, 7.5 |
| 5 |
240V |
1, 3 |
20,16 |
Power Cord Length
| Motor Size |
Available Cord Length (ft.) |
| 3/4 HP 120V |
50, 100, 150, 200 |
| 3/4 HP 240V |
50, 100, 150, 200, 250, 300, 400, 500 |
| 1 HP 120V |
50, 100, 150, 200 |
| 1 HP 240V |
50, 100, 150, 200, 250, 300, 400, 500 |
| 2 HP 240V |
50, 100, 150, 200, 250, 300, 400, 500 |
| 5 HP 240V |
100, 150, 200, 250, 300, 400, 500 |
