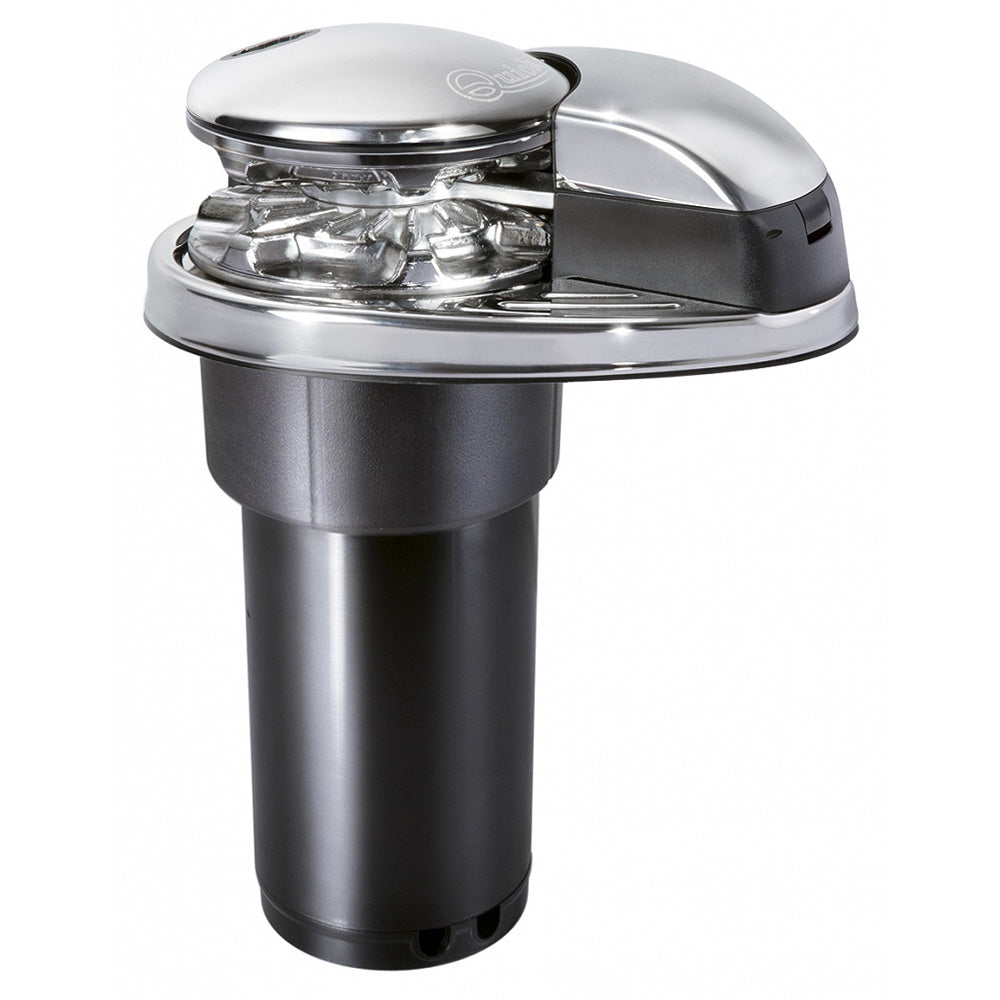

Prince DP2E Windlass - 500W, 12V 7MM Chain to 9/16" Rope
The DP2E is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel, which is a durable element when dealing with harsh marine environments. Features include an IP67 watertight motor, epicyclical gearbox, inspection lid, and easy drop-in installation. The unit is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.
Features:
- Vertical windlass
- Includes T6415-12 Solenoid
- 7mm - 1/4" Gypsy
- Boats 20- 33 ft
- Requires 9/16" three-stranded polyester rope
- Stainless steel AISI 316 base and anodized aluminum in hard oxide.
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- Motor watertight to IP66
- Anodized aluminum gearbox
Specifications:
- Motor power - 500 W
- Motor supply voltage - 12 V
- Maximum pull - 620 Kg / 1367 lb
- Maximum working load - 200 Kg / 441 lb
- Working load - 65 Kg / 143 lb
- Current absorption @ working load - 60 A
- Maximum chain speed - 22,9 m/min / 75.1 ft/min
- Maximum chain speed @ working load - 18.6 m/min / 61.0 ft/min
- Weight - 8,3 Kg / 20.9 lb
