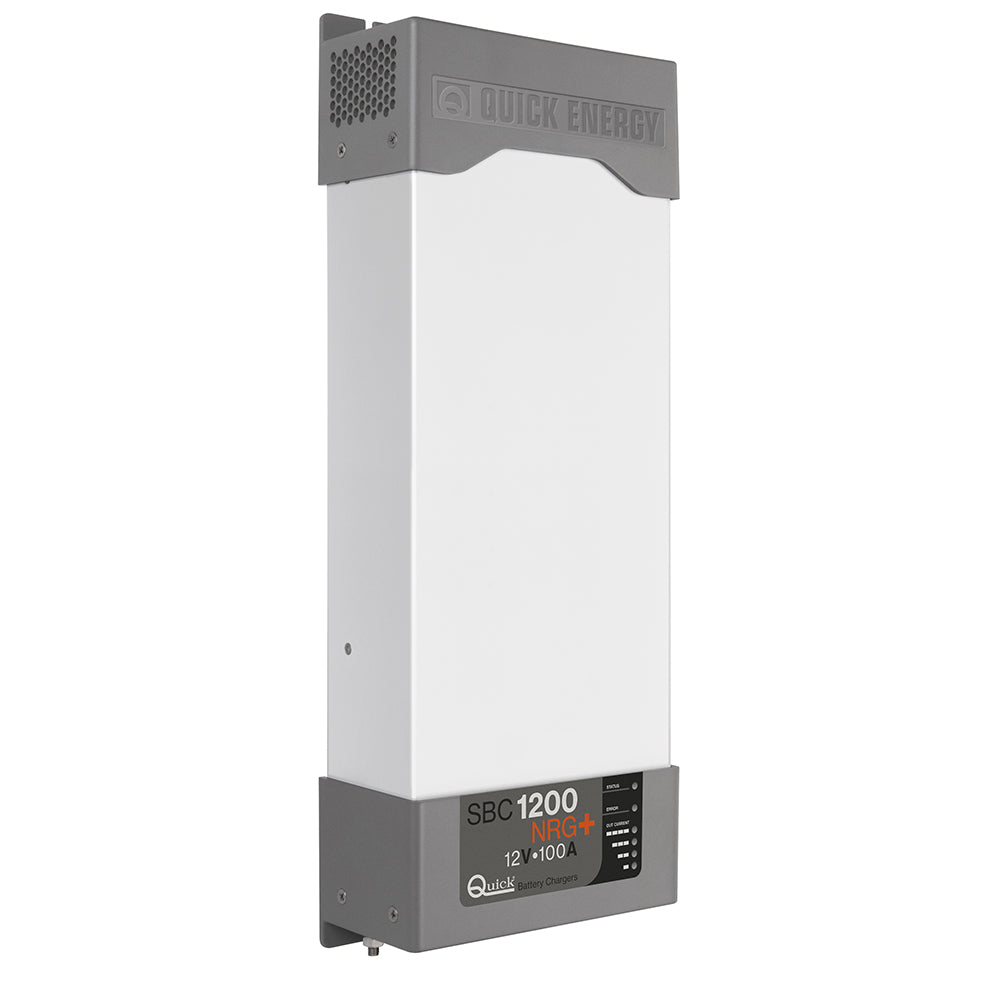

SBC 1200 NRG+ Series Battery Charger - 12V - 100A - 3-Bank
The long experience we have in the nautical field has given us the ability to evolve the range of SBC battery chargers, now called NRG+, with superior performance to those currently on the market.
The advantages which the SBC NRG+ battery chargers offer, are:
- Three stage IUoU battery charging
- High efficiency
- Multiple outputs in order to charge more groups of batteries (MOSFET charge separator inside)
- Differentiated charging for open or sealed liquid electrolite, Gel, AGM, Optima®, Li-Ion Batteries
- Integrated output fuses inside the battery chargers (for each output)
- Capacity of supplying full power with low AC mains voltage
- Possibility to connect in parallel up to three battery chargers of the same model for current sharing by means of digital control
- Low residual fluctuation on output
- Universal AC supply input 264 ÷ 83 Vac, 45 ÷ 66 Hz
- Power factor equal to 1
- Compatible with the generators
- Short circuit, overloading, output overvoltage and overheating protection
- Can work in a wide range of ambient temperatures
- Variable speed for the cooling fan
- User interface via LEDs that signal the status, errors and the output current
- Backlit LCD terminal with multi-language interface (optional)
- Charge is compensated according to the temperature of the batteries (1 sensor supplied; more senors optional)
Specifications:
- Charger Input - Voltage: 120/230v
- Portable: No
- Charging Banks: 3
- Charger Output Voltage: 12v
- Charger Output - Amps: 100a
- Box Dimensions: 6"H x 13"W x 23"L WT: 12.9 lbs
- UPC: 8057090147834
Owner's Manual (pdf)
