- Aeration Kit for Ponds up to 3 acres
- Maximum operation depth of 50 feet
- 1/2 hp Stratus SRC50 Gen 2 compressor with two year warranty

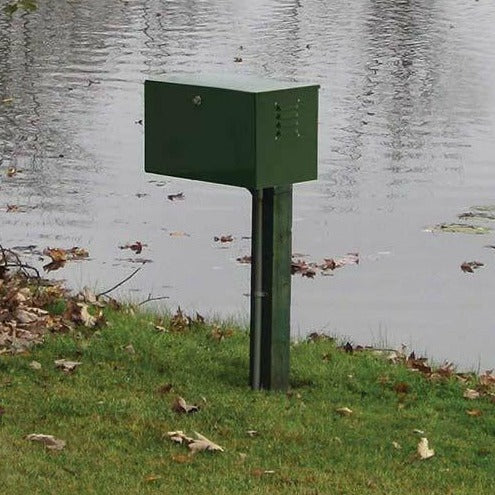

- Includes hardware for either post mounted OR ground mounted cabinet placement!
- Three valve manifold with pressure relief
- Valved outlet with heat reducing hose and 3/8″ connections
- Three QS2 Quick Sink self weighted dual head air diffusers
- 300′ 3/8″ Quick Sink weighted tubing
- Approximately 1.5 cfm of air flow per diffuser
- Typical operation cost of $0.86 per 24 hours at .09¢ per kWh, actual cost may vary
- 2 Year Warranty on Compressor
- 5 Year Warranty on Tubing, Diffusers and Cabinet
- Tubing 300 ft 3/8" Quick Sink
- Amps 3.6/1.8 amps (at 10' operating depth)
- In Aeration Acres Up to 3 acres

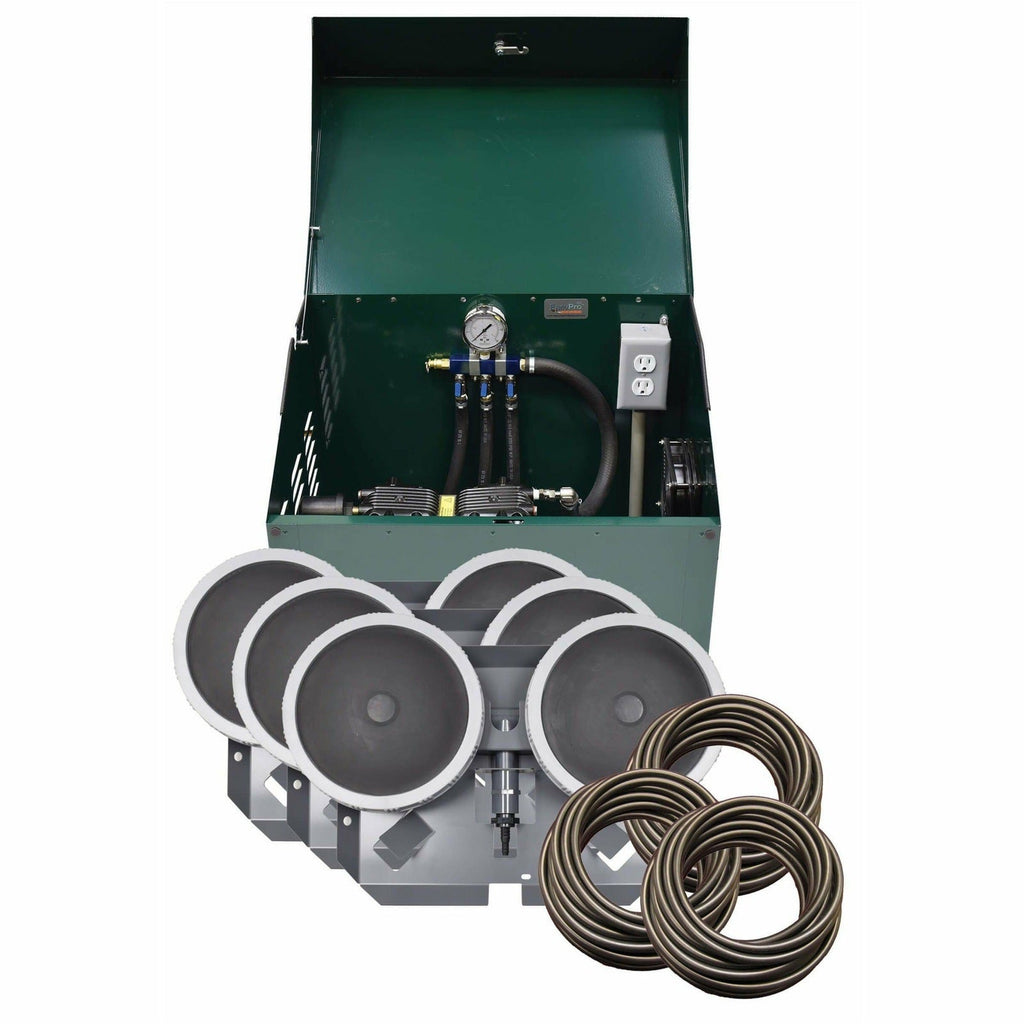

Complete Sentinel Deluxe Aeration System for ponds up to three acres depending on shape and depth of pond. 1/2 hp Rocking Piston SRC50 compressor, 4.5 cfm, 3.6 amps, aerates up to 50′ deep. PA66DP kit includes compressor, three valve outlet assembly, pressure gauge and pressure relief valve all mounted in SC18 Post Mount or SC22 Ground Mount lockable steel cabinet with cooling fan and electrical outlet installed. Kit also includes three QS2 Quick Sink air diffusers, 300′ of 3/8″ Quick Sink tubing and fittings for connections.
Sentinel Deluxe Aeration Systems are designed for convenience and reliability. Each package includes air compressor, valved outlet assembly, pressure gauge and pressure relief valve already installed in our deluxe locking cabinet complete with a cooling fan and a electrical box/outlet already mounted and ready for your incoming power line. Simply set cabinet in desired location, install the air diffusers and connect the tubing!
