Fountain Features
-

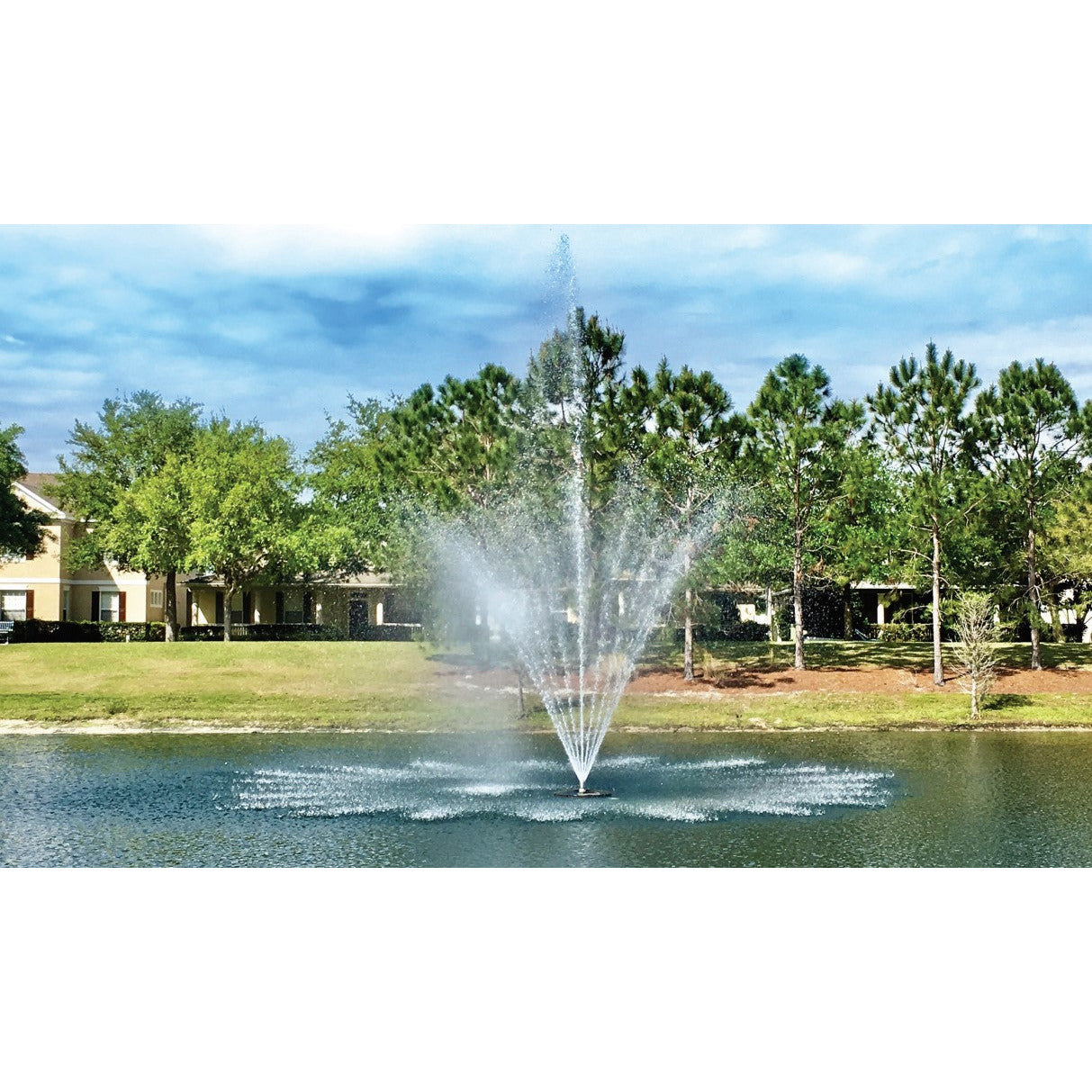

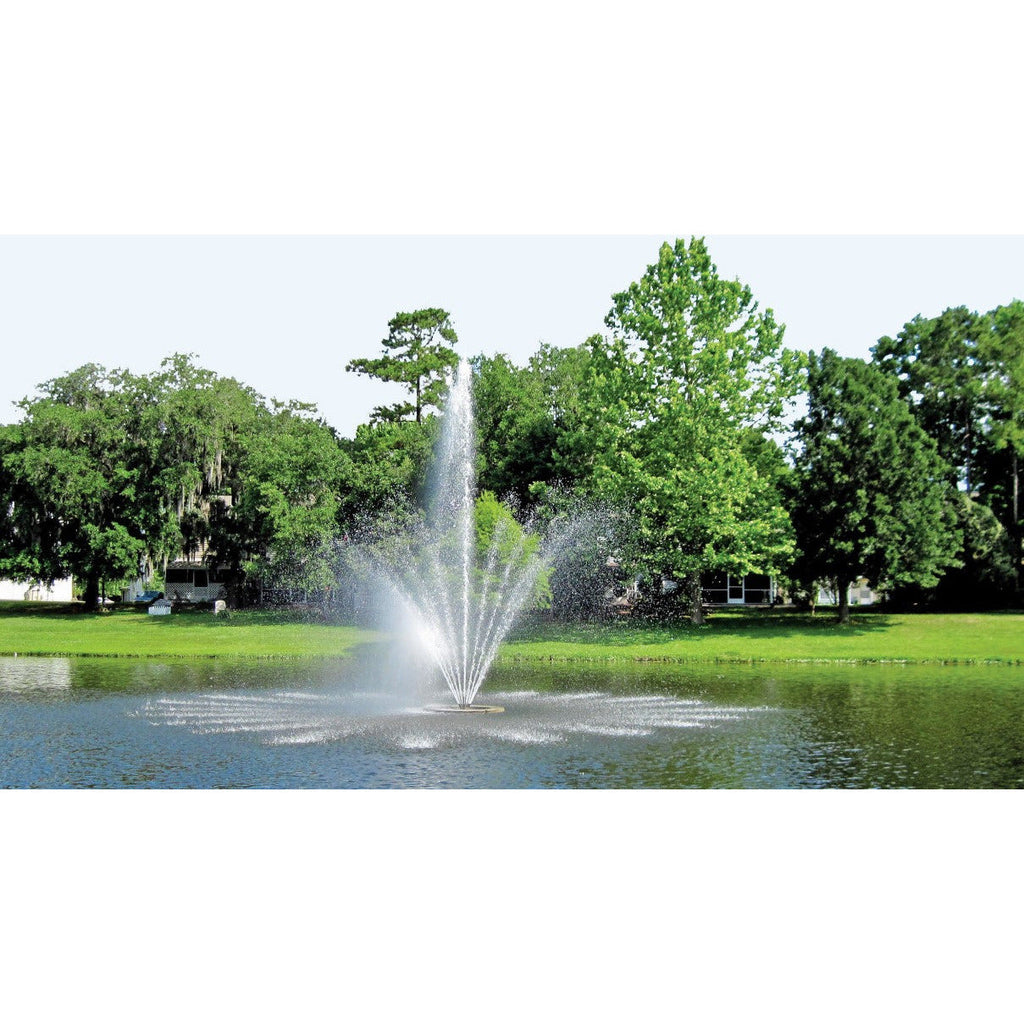

Floating lake fountain designed for large-scale commercial application.
- Available in 2 HP, 3 HP, and 5 HP.
- Suggested LED Lighting Packages:
- 2 lights for 2 HP and 3 HP
- 3 lights for 5 HP
|
Motor
HP
|
Center
Height
|
Side
Height
|
Spray
Diameter
|
| 2 |
18' |
8' |
20' |
| 3 |
23' |
10' |
25' |
| 5 |
26' |
12' |
30' |
Warranty Coverage
All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.
- Pumps and motors: 4-years
Description
The Vertex Vertical Pond Fountain models were developed using the same strict standards as our larger models and are covered under the same warranty program with 4 year coverage for display heads, pumps and motors, 2 years on LED lighting and 1 year for the control panel.
- Quicker installations with a self leveling design
- Smaller profile/lower weight makes handling easier and reduces freight costs
- Lower maintenance costs with no oils, 0-rings or seals to change
Quality and Durability
- Rugged, commercial grade construction stainless steel turbine pumps/motors
- Precision machined brass/stainless steel display nozzles with defined patterns
- Customize your displays and/or controls
- Stainless steel LED lights

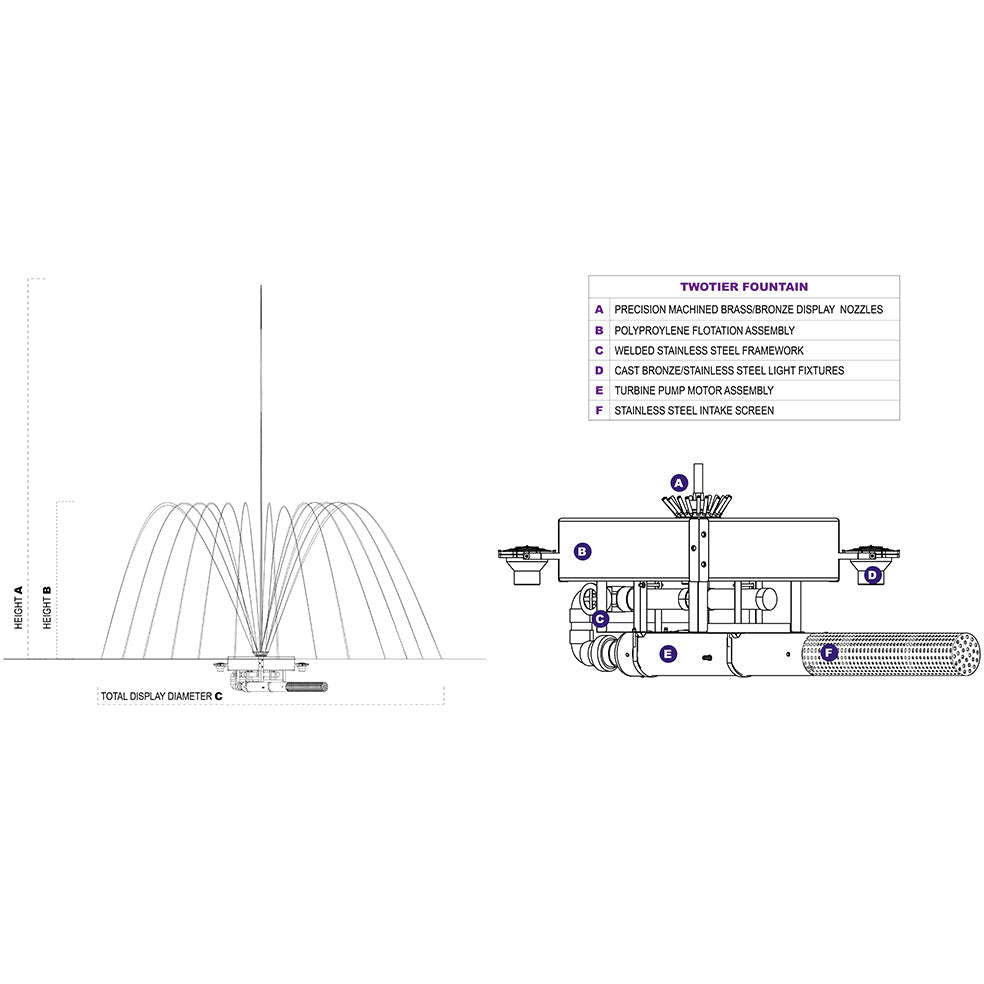

Specs
Nozzles
- Precision stainless steel nozzles.
Pumps/Motors
- High performance turbine pump/motor assembly
- Stainless steel construction
- Water cooled: no oils, seals or o-rings to replace
Flotation
- Rotocast polypropylene with UV inhibitors for long life
- Individual leveling compartments for exact adjustments
Control Panel
- UL listed per National Electrical Code
- Weatherproof steel enclosures
Submersible Light Fixtures
- 43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel
- Energy efficient LED, 140 lumens
Cables
(NOT INCLUDED IN LISTED PRICE)
- Call for price on cable
Minimum Water Depth
|
Motor
HP
|
Minimum
Depth
|
| 2 |
6.5' |
| 3 |
6.5' |
| 5 |
6.5' |
Electrical Specs
|
Motor
HP
|
Total
Wattage
|
Amp
Draw
|
Available
Phase
|
| 2 |
86W |
0.8
|
1,3 |
| 3 |
86W |
0.8
|
1,3 |
| 5 |
129W |
1.1
|
1,3
|
Power Cable
Please see below for maximum cable lengths. All cable is sold in 25' increments.
Single Phase: 230V 60HZ
| HP |
14/4 |
12/4 |
10/4 |
8/4 |
6/4 |
4/4 |
2/4 |
| 2 |
150' |
250' |
400' |
|
|
|
|
| 3 |
125' |
200' |
300' |
400' |
|
|
|
| 5 |
|
|
175' |
275' |
400' |
|
|
| 7.5 |
|
|
|
200' |
300' |
400' |
|
| 10 |
|
|
|
150' |
250' |
400' |
|
| 15 |
|
|
|
|
200' |
300' |
400' |
3-Phase: 230V 60HZ
| HP |
14/4 |
12/4 |
10/4 |
8/4 |
6/4 |
4/4 |
2/4 |
| 2 |
275' |
400' |
|
|
|
|
|
| 3 |
200' |
400' |
|
|
|
|
|
| 5 |
|
225' |
325'
|
400' |
|
|
|
| 7.5 |
|
|
225' |
350' |
400' |
|
|
| 10 |
|
|
|
275' |
400' |
|
|
| 15 |
|
|
|
|
300' |
400' |
|
| 20 |
|
|
|
|
200' |
350' |
400' |
| 25 |
|
|
|
|
|
275' |
400' |
| 30 |
|
|
|
|
|
|
300' |
3-Phase: 208V 60HZ
| HP |
14/4 |
12/4 |
10/4 |
8/4 |
6/4 |
4/4 |
2/4 |
| 2 |
225' |
400' |
|
|
|
|
|
| 3 |
175' |
300' |
400' |
|
|
|
|
| 5 |
|
175' |
300'
|
400' |
|
|
|
| 7.5 |
|
|
200' |
300' |
400' |
|
|
| 10 |
|
|
|
225' |
350' |
400' |
|
| 15 |
|
|
|
|
250' |
400' |
|
| 20 |
|
|
|
|
|
300' |
400' |
| 25 |
|
|
|
|
|
|
375' |
| 30 |
|
|
|
|
|
|
300' |
3-Phase: 460V 60HZ
| HP |
14/4 |
12/4 |
10/4 |
8/4 |
| 2 |
400' |
|
|
|
| 3 |
400' |
|
|
|
| 5 |
400' |
|
|
|
| 7.5 |
400' |
|
|
|
| 10 |
300' |
400' |
|
|
| 15 |
|
|
400' |
|
| 20 |
|
|
400' |
|
| 25 |
|
|
|
400' |
| 30 |
|
|
|
400' |
