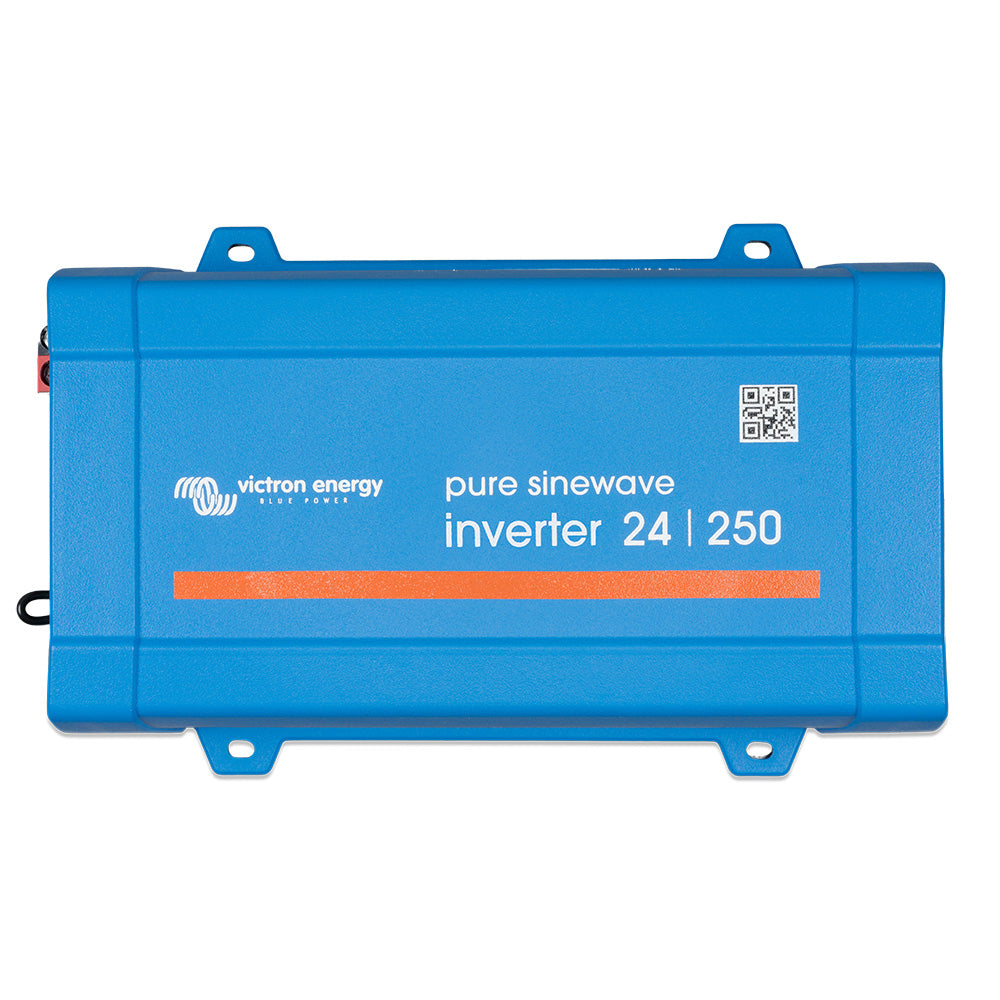

Phoenix Inverter 24/250 120V VE Direct NEMA GFCI UL458
The Victron Phoenix VE.Direct inverter series delivers reliable, pure sine wave AC power from 12V, 24V, or 48V battery systems—ideal for marine, RV, and off-grid applications. Available in power ratings from 250VA to 1600VA, these inverters offer exceptional efficiency, low standby consumption, and full protection for your sensitive electronics.
Features:
- Pure sine wave output – Safely powers sensitive electronics
- VE.Direct communication – Monitor and configure via USB (separate VE.Direct to USB cable required) or Bluetooth with the VictronConnect app (separate VE.Direct Smart Bluetooth Dongle required)
- ECO mode – Minimizes standby consumption to save battery life
- High surge capacity – Starts inductive loads like compressors and pumps
- Full electronic protection – Includes overload, short circuit, and temperature safeguards
- NEMA 5-15R or GFCI outlet – GFCI models are UL 458 listed for added safety
Specifications:
- Input voltages: 12V, 24V, or 48V (depending on model)
- Output voltage: 120V ±3%, 60Hz ±0.1% (adjustable)
- No-load consumption: 4.2–10W (standard) / under 3W (ECO mode)
- Operating temperature: -40°C to +65°C (fan-assisted)
- Ingress protection: IP21
- Remote on/off; screw-terminal DC connection; pair with the Victron Filax 2 for automatic transfer switching
Please contact your dealer for any returns, repairs or support issues related to this product.
